Grounding
SCROLL DOWN

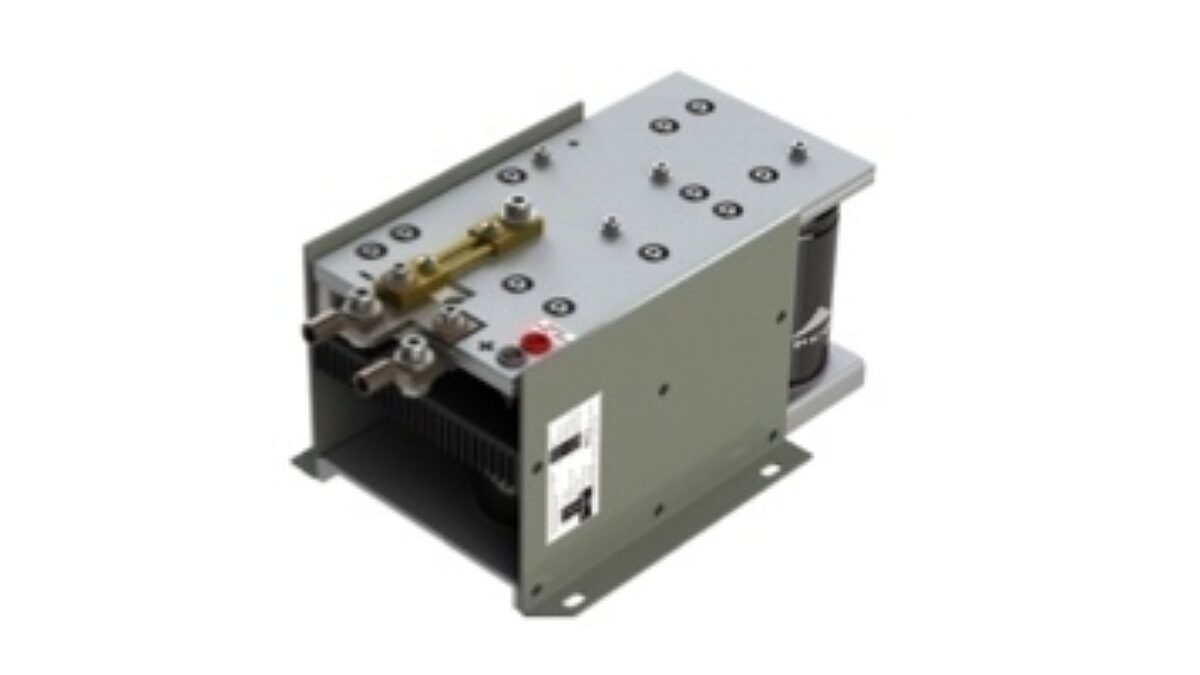

PE and Structure Connector
When multiple grounds connections are used in a DC grid, a special connection unit is needed to make the connection between structure and the PE system. We have comprehensive knowledge in the cathodic protection market and have designed these modules. These modules are often forgotten in large DC applications.
Description
Application
- Cathodic Protection (large structures like pipelines)
- LVDC Industrial grids
- LVDC Distribution grids
Features
- 4kA fault currents during 100mS
- +2.4/-3.2V DC blocking voltage
- AC LF and HF direct coupled to PE up to 40Arms or 80Arms continu without DC offset
- Prevent corrosion currents in large systems
