Smart Car Charging at A.S.R.

Charging and discharging EVs for a future sustainable energy transition with Dutch insurance leader in Utrecht

Last update on 29 March 2023
ASR EV

The future of DC energy is bright with new applications, training programs, and regulations that are continually being developed. This pilot project with ASR's carbon neutral office, a 5000 metre square smart car charging park, highlights the advantages that DC systems have over traditional AC systems.

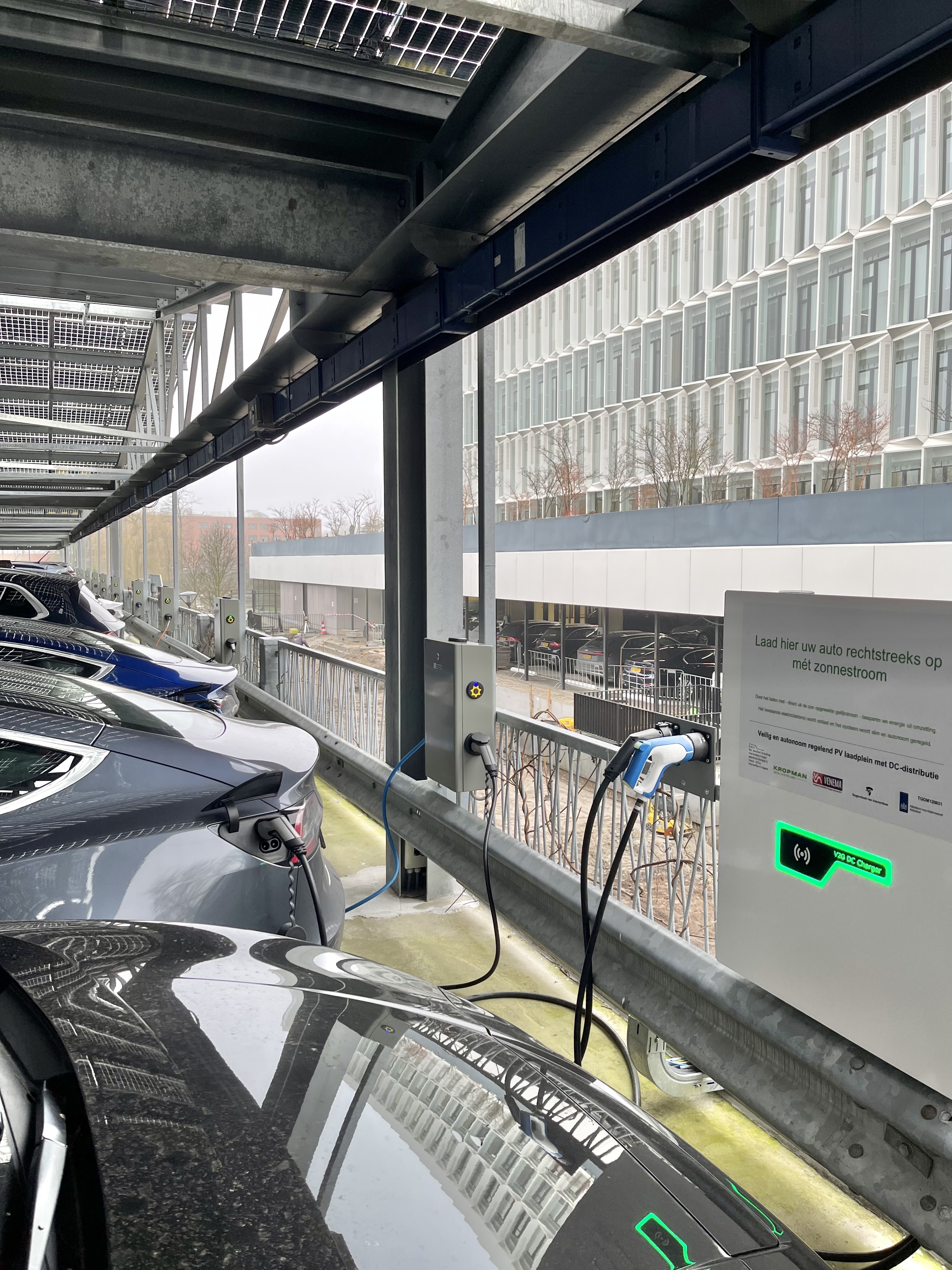

ASR EV chargers View

Car Park with AC and DC chargers for electric vehicles.

Highlights

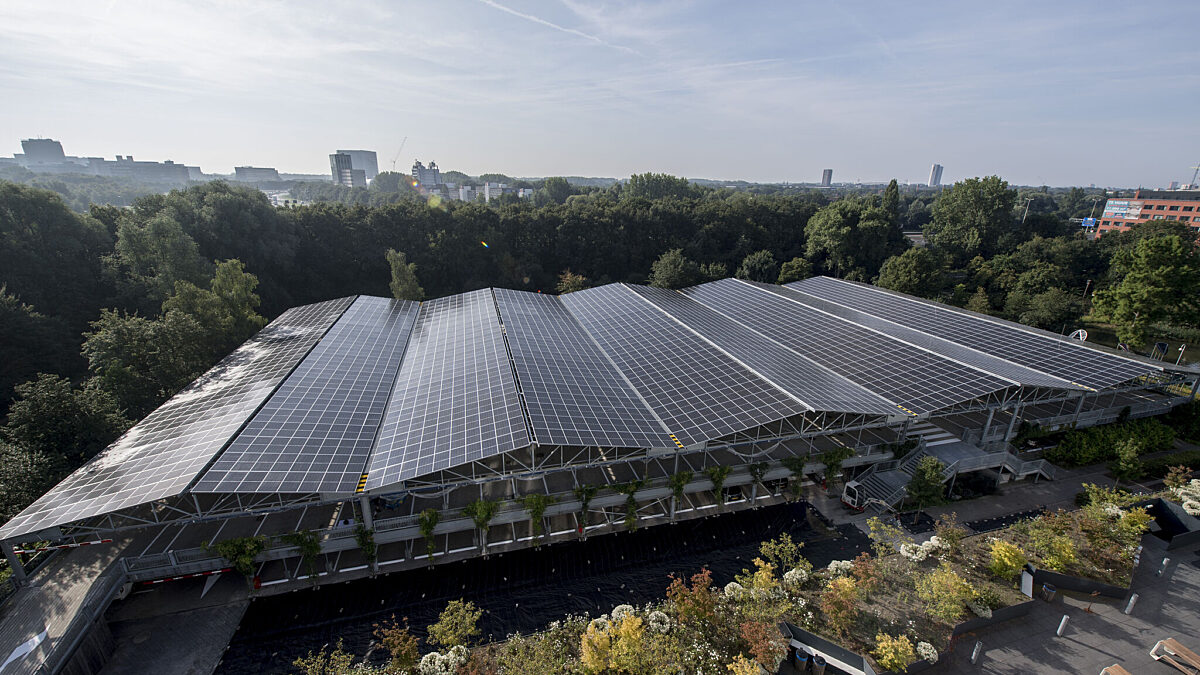

  • 96 solar panels of 48kW connected to AMPT string optimizers on DC.
  • 250 AC EV chargers & 3 DC bi-directional EV chargers of 11kW each, scalable.
  • Active Front End of 50kW.
  • DC distribution cabinet equipped with Solid State Protection (i.e., Current Routers).
  • Autonomous & fast control – based on the Current O/S protocol.
  • Sensor-activated LEDs on DC across both stories of the lot.
  • Stray currents – measuring voltages and currents in 17 places spread over parking decks.
  • Droop rate control: each device has its own settings for voltage and power characteristics.
  • 7 different configurations to determine current leakage and minimize possibility of corrosion.
  • Testing influences on steel construction.
  • Island mode.
  • EMS - Energy Management System.
ASR Protection View

Ultra Fast Solid State Protection for the DC system with Current Routers

AC/DC: Energy Balance

The two-story parking lot was optimized to reduce AC usage and increase DC energy utilization with several benefits:

  • Bottom-up congestion management approach.
  • DC stray currents measurement and monitoring.
  • Monitoring the transformation of electrical energy from AC to DC during charging and discharging.
  • Balancing local energy consumption with local generation.
  • Implementing a droop rate system to regulate current flow based on variable conditions.
  • Safe interface between AC & DC grid with the Active Front End (AFE) & Current Routers providing Solid State Protection.
  • Emulating a mini-grid system to utilize the capacity of electric vehicle chargers, enabling one fully charged EV to support the charging of other EVs as needed (V2V).
  • Implementing autonomous measurement and control, with locally set controls that operate the system automatically.
  • Compared to AC, all components are included in the sophisticated, smart DC systems, resulting in

    • Less materials used
    • Increased efficiency
    • Inherently more robust systems
  • Flexible grid topology.

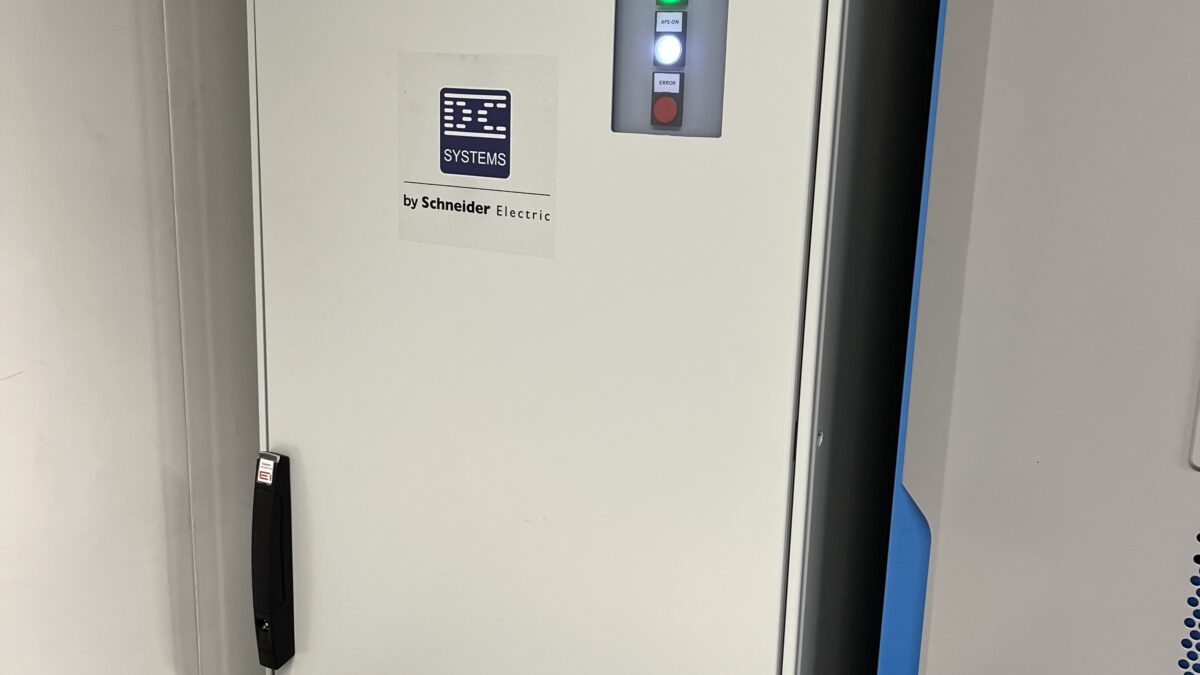

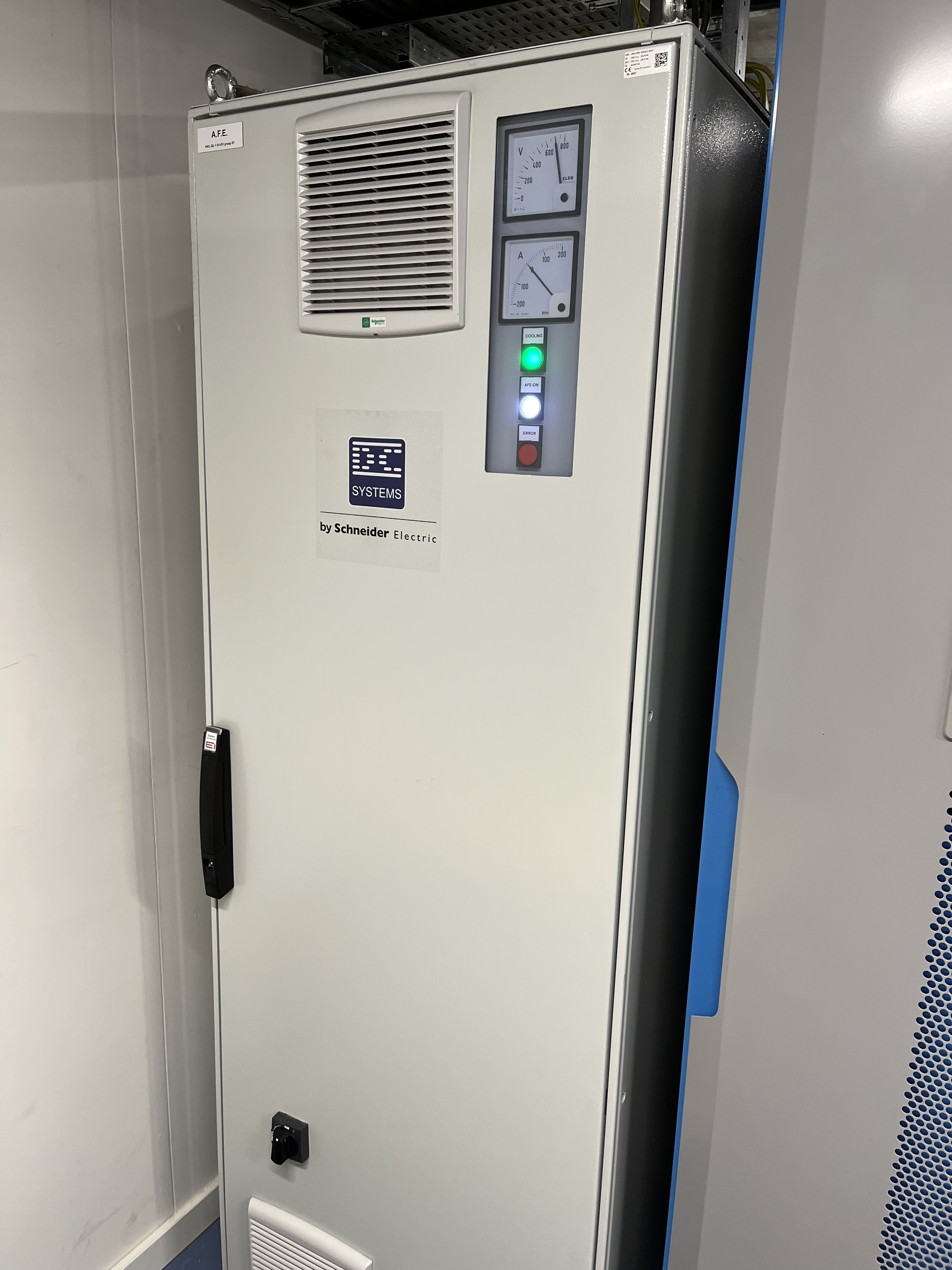

ASR AFE2 View

Active Front End supporting the DC Grid

Project Partners

  • ASR
  • Kropman
  • Venema
  • Hogeschool van Amsterdam
  • RVO Nederland; Topsector Energie

Check out our mini blog of the smart parking

ASR Car Park 3
Detailed Article

Explore the technical specifications of this pilot project.
